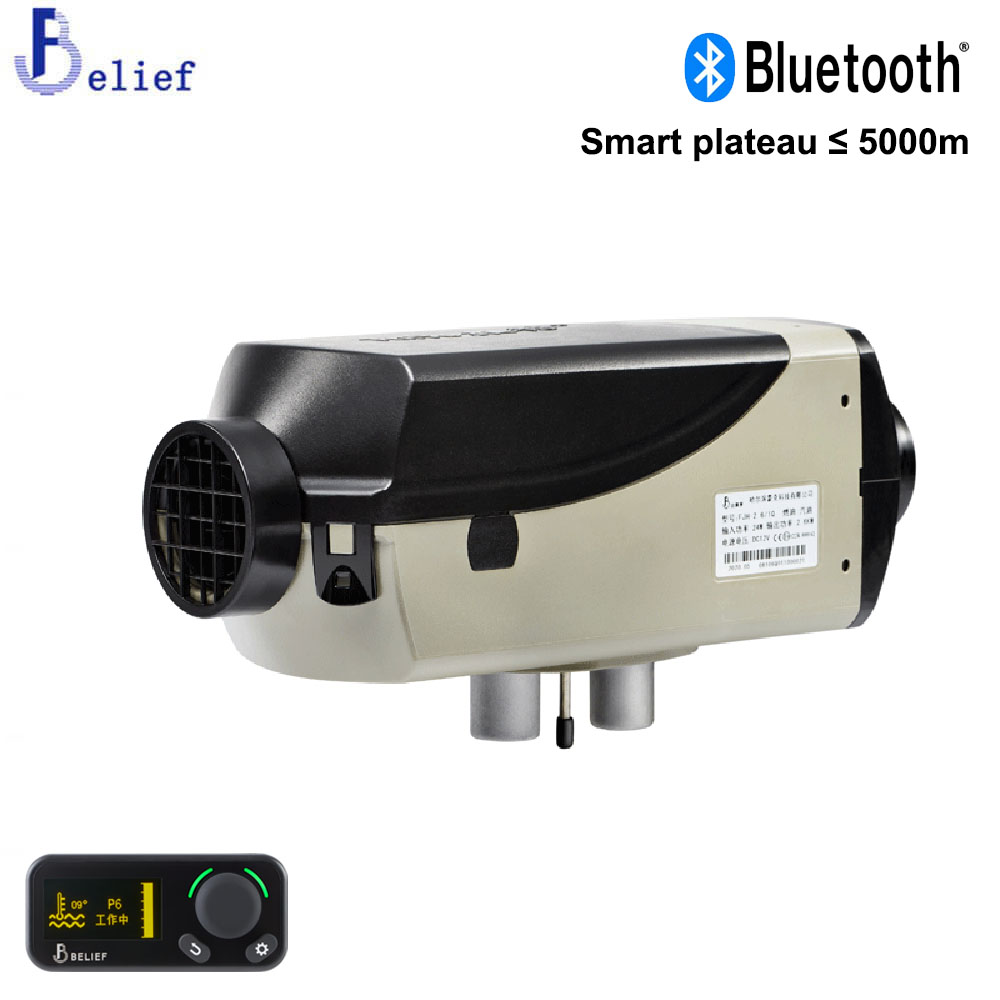

Gasoline Parking Heater 2.2KW 12V
when Gasoline Parking Heater works, cold air is sucked into the air passage by the heat supplying fan and blown out when it becomes hot, so as to form another heating system that independent from the original heating system of the vehicles. In such a way, heat can be supplied by the heater to drivers’ cab and passengers’ compartment, no matter the engine is working or not.
The air parking heater can be applied for heating the cab of the freight vehicles, vans, storage battery cars and all kinds of other vehicles.
we also have water parking heater, electric car parking heater, and 2018 new air and water integrated heater
Product Description
| Product name | 2.2KW 12V Car Diesel Heater |
| Brand | TuiTe |
| Fuel | Diesel |
| Fuel consumption | 0.1-0.28 |
| Rated voltage | 12V/24V |
| Product size | 310*115*122mm |
| Heater power | 2.2kw |
| Working temperature | -40℃~+20℃ |
| Working height | 1500m |
| The weight of the main heater | 2.7kg |
Advantages:
- Quiet operation to protect your comfortable ride
- Excellent Performance of the independent type of continuous heater capacity
- The perfect and simple control device
- Compact shape for easy installation on any vehicle
- Diagnosis function significantly reduces maintain time
About us
Our factory was established in April 1998, located in Harbin, Heilongjiang province.
We have the independent R&D organization and has established long-term cooperative relationships with state key universities and colleges like Harbin Institute of Technology, Harbin Engineering University, etc.
Annual production is more than 150,000 sets.
We exported to Europe, the United States, Canada, Japan, and etc 60 countries. We have sole dealers in AU and UK and Denmark.
| No. | Name | Specifications | Amount |
| 1 | Parking heater | DC12V() /DC24V() | 1 |
| 2 | Main wiring Bundle | DC12V() /DC24V() | 1 |
| 3 | Oil pump | DC12V() /DC24V() | 1 |
| 4 | Oil pump connection wire | L=6800mm | 1 |
| 5 | Filter | 1 | |
| 6 | Oil pipe | Φ2/ Φ5 L=8000 | 1 |
| 7 | Control switch | DC12V() /DC24V() | 1 |
| 8 | Inlet air pipe | Φ23/ Φ26 L=750 | 1 |
| 9 | Exhaust pipe | Φ22/ Φ28 L=700 | 1 |
| 10 | Gasket | 81*110*P | 1 |
| 11 | Reducing tee | 1 | |
| 12 | Oil pump clip | D=32 | 1 |
| 13 | Inlet air pipe clip | Φ16/ Φ25 | 1 |
| 14 | Exhaust pipe clip | Φ22/ Φ26 | 1 |
| 15 | Inlet air pipe fixing clip | Φ24 | 2 |
| 16 | Exhaust pipe fixing clip | Φ27 | 2 |
| 17 | Oil pipe joint | Φ4.1/ Φ10.5 L=50 | 6 |
| 18 | Oil pipe clip | Φ9/ Φ11(10) | 12 |
| 19 | Oil pipe clip | Φ12/ Φ14 | 2 |
| 20 | Washer | Φ6 | 4 |
| 21 | Nut | M6 | 4 |
| 22 | Self-drilling tapping screw | ST5.5*25 | 4 |
| 23 | Self-drilling tapping screw | ST5.5*30 | 1 |
| 24 | Self-tapping screw | ST4*16 | 1 |
| 25 | Self-tapping screw | ST3*30 | 4 |
| 26 | Cable ties | 200mm | 10 |
| 27 | Oil suction pipe | Φ5*600 | 1 |
| 28 | Operation manual | 1 |
