Engine coolant heater 9KW 12V

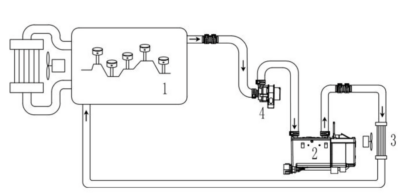

This Engine coolant heater uses the gas or diesel as the fuel, heat the cooling liquid of the engine the forced-circulation water pump circulation in the cars waterway, prepare the engine and reduces the attrition achieves the purpose of eliminating the frost and warming the compartment.
Engine coolant heater 9KW 12V
when Engine coolant heater works, cold air is sucked into the air passage by the heat supplying fan and blown out when it becomes hot, so as to form another heating system that independent from the original heating system of the vehicles. In such a way, heat can be supplied by the heater to drivers’ cab and passengers’ compartment, no matter the engine is working or not.
This water parking heater uses the gas or diesel as the fuel, heat the cooling liquid of the engine the forced-circulation water pump circulation in the cars waterway, prepare the engine and reduces the attrition achieves the purpose of eliminating the frost and warming the compartment.
Product Description
| Heat Power (W) | 9000 |
| Fuel Type | Diesel Heater |
| Rated Voltage | 12V/24V |
| Fuel Consumption | 0.19~0.91 |
| Rated Power Consumption (W) | 37~83 |
| Working (Environment) Temperature | -40 ℃~+85℃ |
| Working height above sea level | ≤1500m |
| Mobile phone control(Optional) | No limitation(GSM network coverage) |
Advantages:
- Quiet operation to protect your comfortable ride
- Excellent Performance of the independent type of continuous heater capacity
- The perfect and simple control device
- Compact shape for easy installation on any vehicle
- Diagnosis function significantly reduces maintain time
About us
Our factory was established in April 1998, located in Harbin, Heilongjiang province.
We have the independent R&D organization and has established long-term cooperative relationships with state key universities and colleges like Harbin Institute of Technology, Harbin Engineering University, etc.
Annual production is more than 150,000 sets.
We exported to Europe, the United States, Canada, Japan, and etc 60 countries. We have sole dealers in AU and UK and Denmark.
| No. | Name | Specifications | Amount |
| 1 | Parking heater | 5KW | 1 |
| 2 | Timer | 1 | |
| 3 | Fuel pump | YB-Ⅰ-12V(24V) | 1 |
| 4 | Muffler | XYQ-Ⅰ | 1 |
| 5 | Wiring harness | 1 | |
| 6 | Water pump | 12V (24V) | 1 |
| 7 | Heater bracket | 1 | |
| 8 | Rubber cushion | 4 | |
| 9 | Muffler bracket | 1 | |
| 10 | Air inlet pipe | Φ20.5/Φ24 L=900 | 1 |
| 11 | Exhaust pipe | Φ24/Φ29.5 L=1000 | 1 |
| 12 | Positive wire of power supply | 1 | |
| 13 | Fuse base | With cover | 1 |
| 14 | Fuse | QY169-5A | 1 |
| 15 | Fuse | 12V/20A(24V/15A) | 1 |
| 16 | Fuse | QY169-25A | 1 |
| 17 | Water pipe | Φ17/Φ27 L=2600 | 1 |
| 18 | Clip | 16-25 | 1 |
| 19 | Spring clip | Φ24×Φ27 | 10 |
| 20 | Oil pump clip | Φ32 | 1 |
| 21 | Oil pipe clip | 8-10 (9-11) | 12 |
| 22 | Exhaust pipe clip | Φ24-28 | 3 |
| 23 | Air inlet pipe fixing clip | Φ24 t=0.5 | 2 |
| 24 | Exhaust pipe fixing clip | Φ27 t=0.8 | 2 |
| 25 | Fuel pipe | GasolineΦ1.5×Φ4(DieselΦ2×Φ5) | 1 |
| 26 | Fuel pipe connector | Φ3.5/Φ9.5(Φ4.1/Φ10.5) | 6 |
| 27 | water pipe connector | Φ18 L=55 | 2 |
| 28 | Special water pipe connector | PPA +33 Φ20×Φ18 L=60 | 2 |
| 29 | Relay | 4141(only for 12V) | 1 |
| 30 | Filter | RYL-Ⅰ(only for diesel) | 1 |
| 31 | Bolt | M6×10 | 1 |
| 32 | Self drilling tapping screw | ST5.5×25 | 6 |
| 33 | Self drilling tapping screw | ST5.5×30 | 5 |
| 34 | Self tapping screw | ST3×20 | 1 |
| 35 | Self tapping screw | ST4×16 | 3 |
| 36 | Spring washer | Φ6 | 2 |
| 37 | Washer | Φ6/Φ12 | 2 |
| 38 | Nut | M6 | 1 |
| 39 | Fuel suction pipe | XYG-Ⅰ 3×400 | 1 |
| 40 | Plug | DJ7041A-2.8-21 | 1 |
| 41 | Nylon cable ties | 4×150 | 1 |
| 42 | Nylon cable ties | 4×200 | 1 |
| 43 | Instruction manual | 1 | |
| 44 | Reducing T | Φ6-Φ10/Φ10 | 1 |
| 45 | Oil pipe clip | 12-14 | 2 |
| 46 | Non-return valve | D18 | 1 |
| 47 | Transition elbow | 2 | |
| 48 | Fixing gear | 2 | |
| 49 | O-ring | 14.8×2.62 | 2 |
| 50 | Bolt | M6×95 | 4 |
