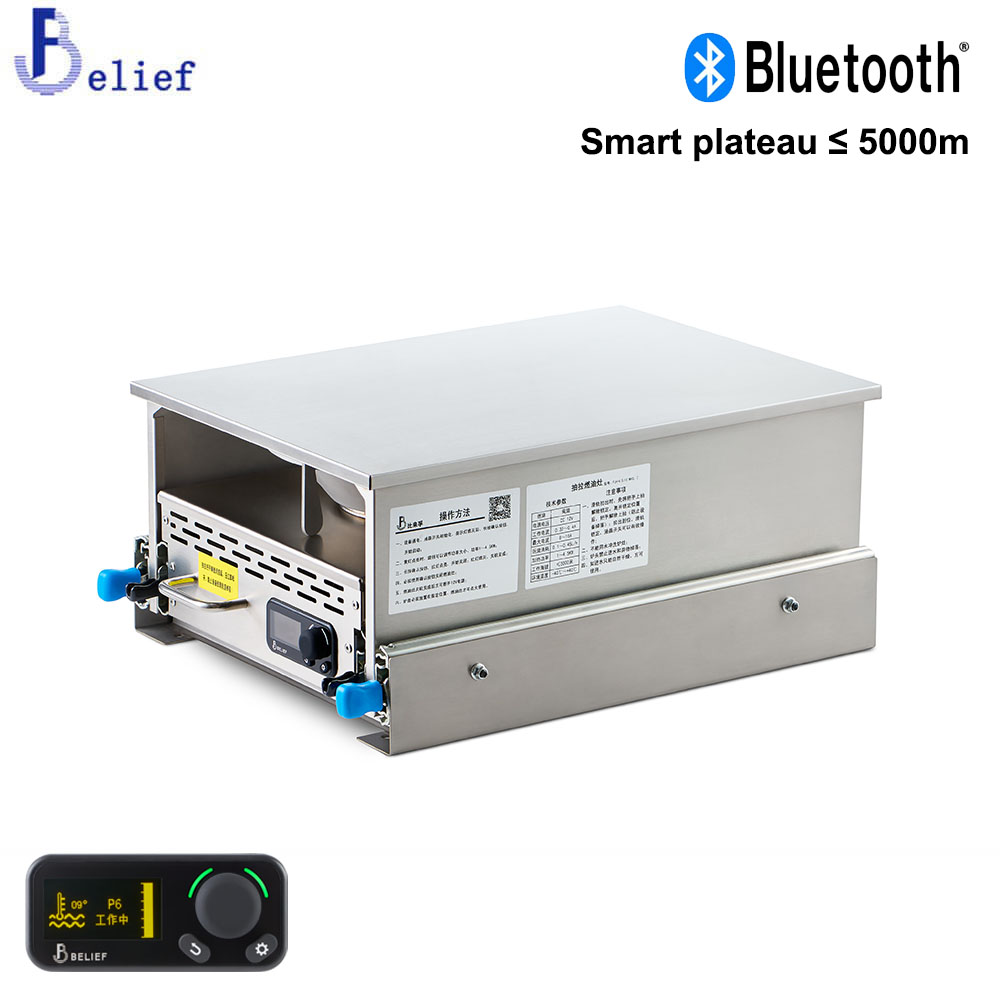

Diesel burning stove RV slide type

Diesel burning stove RV slide type

Diesel burning stove RV is a special fuel stove with cooking function for RV. It takes the diesel as fuel, so, it is more stable than the gas stove. Moreover it is more efficient and safe during driving.

We can use the fuel stove for outdoor cooking such as on boats, motorhome etc. What is more, it is very easy to carry. Although the diesel burning stove is a diesel cooker with an open flame, it is windproof design. This fuel stove is not allowed to be used while driving. It can cook and heat various foods by adjusting the heating power through the control switch.

Belief brand has been focusing on heating products and stoves for small cars, boats and caravan motorhomes for 25 years, it provides high quality items as famous as Webasto, Eberspacher and Truma.

Its main products range from air parking heater, water parking heater, diesel combi heater, diesel stove air heater, diesel stoves and caravan water heater.

Application:

The diesel burning stove can be used in caravan, motorhome, and it is suitable for self-driving tours, team tours, and long-distance freight drivers to cook outdoors.

Important notes for users:

Be sure to read the instruction manual carefully before installation and use.

DO install the pull-out stove horizontally.

DO NOT add any covering on the surface of the pull-out stove.

Power Supply

Heater power leads (positive and negative line) must be connected to the 12V/24V batteries directly. Battery more than 2 years which lack of electric frequently should be changed a new one in order to ensure normal use of the heater.

Fuel Supply

The fuel for the heater can be from the fuel tank in the car or from optional 5L independent fuel tank. The fuel pump is used for transmission of fuel and regulation of supply quantity of fuel.

Fuel pump installation

The optimum installation angle for the fuel pump is from 15 to 35 degrees, the allowable installation angle is from 35 to 90(max) degrees.

Attention for the fuel level, see attached photos.

Max.fuel level – 2
Min.fuel level – 3
Fuel inlet level – 4

Fuel standard

Diesel should accord with standard DIN EN590
Note: DO NOT USE Biofuel!

Product advantages

The diesel burning stove is a diesel cooker that burns with an open flame. DO NOT USE This fuel stove while driving.

• Safe
• Super quiet
• Fuel saving
• Fast heating
• Strong firepower, can be stir-fried(4.5KW)
• Bluetooth function
• Smart plateau function ≤ 5000m
• Stable performance

Diesel burning stove installation

• The Diesel burning stove should be installed horizontally, and the inclination angle should not exceed 5° from the vertical level. If the oil stove is running at an excessive angle (up to several hours), the equipment may not be damaged, but it will affect the combustion effect and the burner will not achieve optimal efficiency.
• Pull out the pull-out range to expose 12 screw fixing holes (Figure 3). All fixing bolts should be installed to ensure that the pull-out range bracket is firmly fixed to the car body.
• It should be ensured that there are no unreliable factors such as sundries that may cause the control switch to be touched by mistake and lead to heating when the machine is turned on.

Technical Specifications :

Warning:

• User must not use the diesel burning stove while driving.
• DO NOT store the heat-sensitive objects (such as spray cans) or flammable materials/liquids in the same compartment. In some cases the area may be subject to high temperatures.
• Keep the combustion air inlet free from contamination (slush, ice, leaves, etc.) at all times.
• The owner is responsible for operating the equipment correctly.
• The fuel system must comply with the national technical and administrative regulations. Users must abide by the national legislation and regulations.
• It is necessary to regularly check the installation firmness of the pull-out stove, whether the wires and oil pipes are in good condition, especially at the end of a long-distance trip.
• When cleaning the vehicle, Users do not spray water directly into the pull-out stove.
• Don’t put cover on the top of the pull-out stove, it may easily cause fire.
