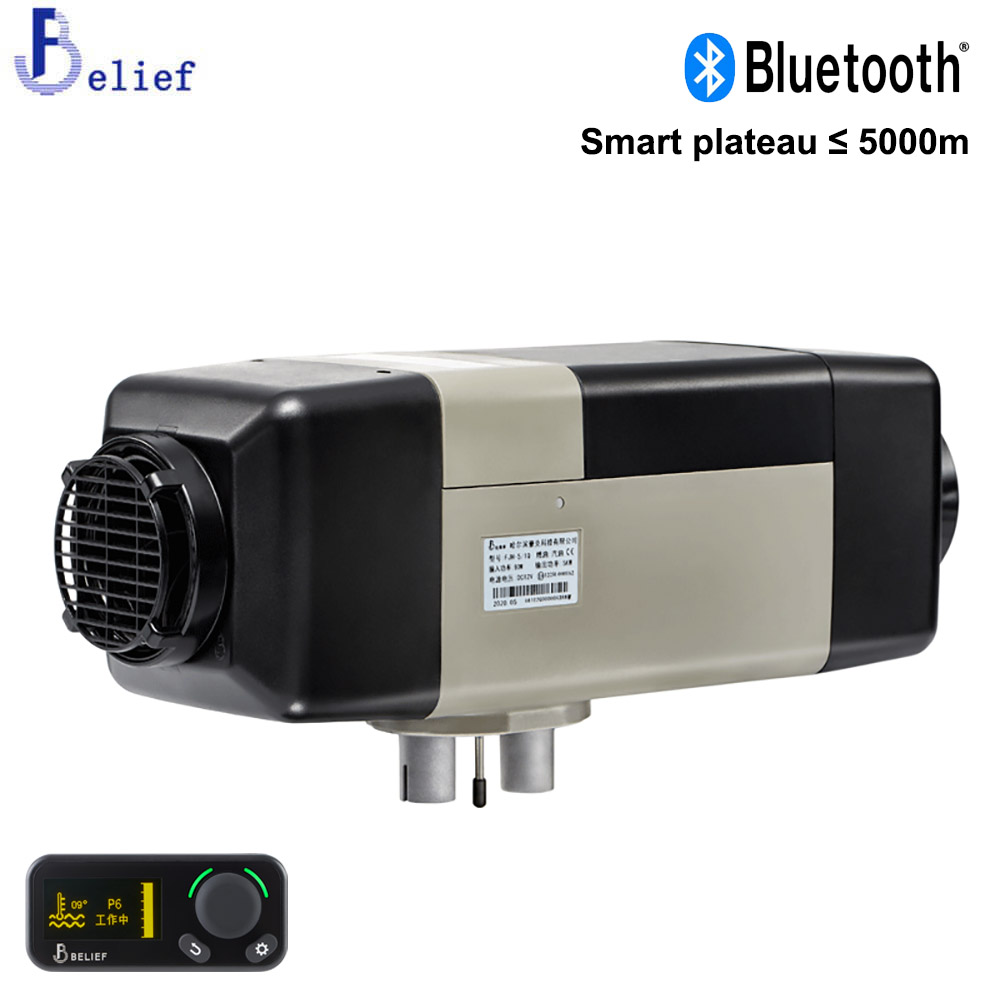

Belief parking heater 5KW 12V
Belief parking heater 5KW is a smart air parking heater, Super quiet, Fuel saving, emission reduction and environmental, heating, Bluetooth function, Smart plateau function, Self-protection and self- diagnosis function, It is suitable for space heating in caravans, bed cars, electric cars, trucks, yachts.
Belief parking heater 5KW 12V
Belief parking heater 5KW 12V is a smart parking heater, clients can select to control the heater either by knob switch, LCD switch or App on smart phone, it all depends on the customer’s usage habits. Clients can downloaded the apps from Appstore, it is available for both Android and ISO system.
Pls check the instruction for Bluetooth function in the download section. There is also Gasoline version for this 2KW air parking heater.
The Belief parking heater 5KW 12V is divided into diesel type and gasoline type. It is controlled by a small single-chip microcomputer, and the cold air is inhaled by the heating fan wheel. After heating, it is blown into the space that needs to be heated to achieve the independent heating of the space.
we also have water parking heater, air parking heater, 4kw diesel combi heater, diesel stove heater, diesel burning stove, etc.
Product advantages of Belief parking heater
- Super quiet
- Fuel saving
- Fast heating
- Bluetooth function
- Smart plateau function
- Stable performance
- Self-protection and self-diagnosis function
- App control (Android and Iphone)
- External thermostat sensor available (optional)
Application:
The air parking heater can be used for space heating in caravans, bed cars, electric cars, trucks, yachts, house etc.
Important notes for users:
Be sure to read the instruction manual carefully before installation and use.
Power Supply
Heater power leads (positive and negative line) must be connected to the 12V/24V batteries directly. Battery more than 2 years which lack of electric frequently should be changed a new one in order to ensure normal use of the heater.
Fuel Supply
The fuel for the heater can be from the fuel tank in the car or from optional 5L independent fuel tank. The fuel pump is used for transmission of fuel and regulation of supply quantity of fuel.
Fuel pump installation
The optimum installation angle for the fuel pump is from 15 to 35 degrees, the allowable installation angle is from 35 to 90(max) degrees.
Attention for the fuel level, see attached photos.
Max.fuel level – 2
Min.fuel level – 3
Fuel inlet level – 4
Fuel standard
Gasoline should accord with standard DIN EN288
Diesel should accord with standard DIN EN590
Note: Fuel brand which used should meet the requirements of low temperature in winter. Biofuel is forbidden!
About APP control
Search in the app store for the MyBluee App and install via the app store.
Technical Specifications of Belief parking heater
|
Heat Power (W) |
5000 |
|
Battery (60AH recommended) |
INSTANTANEOUS CURRENT 30A |
|
Fuel |
Diesel |
|
Rated Voltage |
12V/24V |
|
Fuel Consumption |
0.19~0.60 |
|
Rated Power Consumption (W) |
15~90 |
|
Working (Environment) Temperature |
-40℃~+20℃ |
|
Working height above sea level |
≤5000m |
|
Weight of Main Heater (kg) |
5.9 |
|
Dimensions (mm) |
425×148×162 |
|
APP control |
Andriod and Iphone |
|
CTN size (cm) |
56×52×22 |
|
Express(UPS/Fedex) Weight (kg) |
13 |
Warning:
Under either of the above circumstances, DO NOT use the heater even at the stand-by state.
- DO NOT install and use the heater in bedrooms.
- If the heater is installed in special-purpose vehicles (such as vehicles for dangerous goods), special rules must be followed in installing the heater.
- Never place fuel tank, compression tank, fire extinguisher, clothes, paper, etc. near the heater or opposite to the hot air vent.
Features
- Intelligent plateau function (Within 5000m, automatically adjust according to different altitudes)
- Compact structure, small size, easy installation
- Fuel saving, emission reduction and environmental protection
- Quiet operation, fast heating, stable performance, easy operation, self-protection and self-diagnosis function
About us
Our factory was established since 1998, located in Harbin, Heilongjiang province. We focus on the heating and cooking solutions for caravans and motorhomes, we have an independent R&D organization and have established long-term cooperative relationships with state key universities and colleges like Harbin Institute of Technology, Harbin Engineering University, etc. Annual production is more than 150,000 sets.
| No. | Name | Specifications | Amount |
| 1 | Parking heater | DC12V() /DC24V() | 1 |
| 2 | Main wiring Bundle | DC12V() /DC24V() | 1 |
| 3 | Oil pump | DC12V() /DC24V() | 1 |
| 4 | Oil pump connection wire | L=6800mm | 1 |
| 5 | Filter | 1 | |
| 6 | Oil pipe | Φ2/ Φ5 L=8000 | 1 |
| 7 | Control switch | DC12V() /DC24V() | 1 |
| 8 | Inlet air pipe | Φ23/ Φ26 L=750 | 1 |
| 9 | Exhaust pipe | Φ22/ Φ28 L=700 | 1 |
| 10 | Gasket | 81*110*P | 1 |
| 11 | Reducing tee | 1 | |
| 12 | Oil pump clip | D=32 | 1 |
| 13 | Inlet air pipe clip | Φ16/ Φ25 | 1 |
| 14 | Exhaust pipe clip | Φ22/ Φ26 | 1 |
| 15 | Inlet air pipe fixing clip | Φ24 | 2 |
| 16 | Exhaust pipe fixing clip | Φ27 | 2 |
| 17 | Oil pipe joint | Φ4.1/ Φ10.5 L=50 | 6 |
| 18 | Oil pipe clip | Φ9/ Φ11(10) | 12 |
| 19 | Oil pipe clip | Φ12/ Φ14 | 2 |
| 20 | Washer | Φ6 | 4 |
| 21 | Nut | M6 | 4 |
| 22 | Self-drilling tapping screw | ST5.5*25 | 4 |
| 23 | Self-drilling tapping screw | ST5.5*30 | 1 |
| 24 | Self-tapping screw | ST4*16 | 1 |
| 25 | Self-tapping screw | ST3*30 | 4 |
| 26 | Cable ties | 200mm | 10 |
| 27 | Oil suction pipe | Φ5*600 | 1 |
| 28 | Operation manual | 1 |
