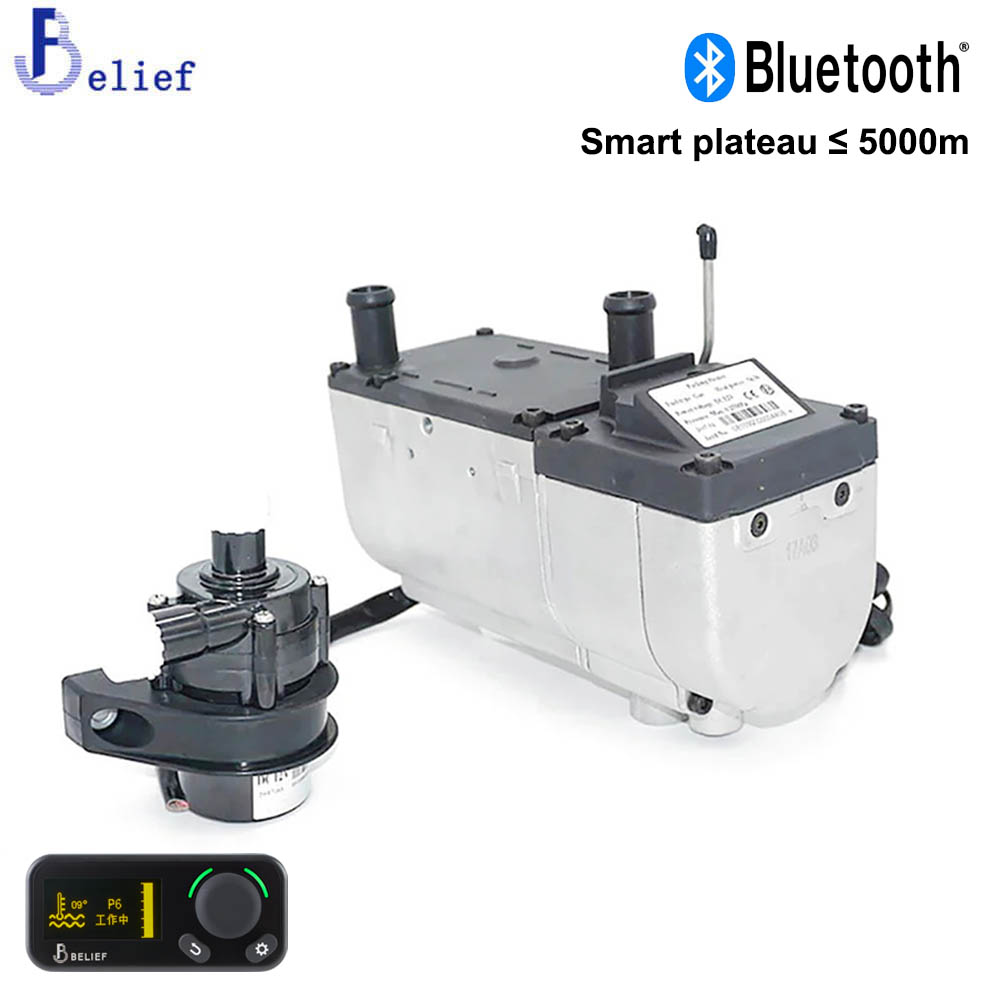

Belief 5KW coolant parking heater is a smart engine heater, it is with bluetooth, smart plateau function, Low fuel consumption, Large flow. Stable performance, Remote upgrade, GSM control (Optional)
This belief coolant parking heater 5KW is a small fuel furnace controlled by a single-chip microprocessor. Its medium circulation system is connected with the cooling system of an automobile engine. In such a way, the cooling liquid for the engine can be heated by the heater while the engine is not working, so as to increase the temperature of the engine and the interior of the automobile.
With the help of the coolant parking heater, it is easy to start the engine even at very low temperatures and both the drivers and passengers can have a warmer environment.
The cooling liquid of the engine flows through the water inlet pipe, the furnace cavity between the furnace inner casing and outer casing, and the water outlet pipe, forming a complete loop for the cooling liquid circulation system. The circulation is forced by the water pump. In this way, the cooling liquid of the engine can be heated again and again in the furnace, and the temperature of the engine, water-tank, heat-exchanger, and cab can rise gradually.
Pls ensure that the Battery used can provide 30A INSTANTANEOUS CURRENT when starting the heater, Recommended 60AH battery at least.
Be sure to read the instruction manual carefully before installation and use.
If the temperature of cooling liquid is higher than 70°C, the heater can only be started after the temperature is reduced through pump circulation.
Power Supply
Heater power leads (positive and negative line) must be connected to the 12V/24V batteries directly. Battery more than 2 years which lack of electric frequently should be changed a new one in order to ensure normal use of the heater.
Fuel Supply
The fuel for the heater can be from the fuel tank in the car or from optional 5L independent fuel tank. The fuel pump is used for transmission of fuel and regulation of supply quantity of fuel.
Fuel pump installation
The optimum installation angle for the fuel pump is from 15 to 35 degrees, the allowable installation angle is from 35 to 90(max) degrees.
Attention for the fuel level, see attached photos.
Max.fuel level – 2
Min.fuel level – 3
Fuel inlet level – 4
Fuel standard
Gasoline should accord with standard DIN EN288
Diesel should accord with standard DIN EN590
Note: Fuel brand which used should meet the requirements of low temperature in winter. Biofuel is forbidden!
Heating medium |
Belief 5KW engine heater |
Battery (60AH recommended) |
INSTANTANEOUS CURRENT 30A |
Thermal power(W) |
5000 |
Power(W) |
2400-5000 |
Fuel type |
Diesel |
Fuel consumption(l/h) |
0.27 ~ 0.62 |
Rated voltage |
DC12/24V |
Power consumption(W) |
10 ~ 37 (at starting<100) |
Working pressure(Mpa) |
0.25 |
Lowest working temperature |
-40℃ |
Working height above sea level |
≤5000m |
APP control |
Andriod and Iphone |
Coolant starting temperature |
45℃ |
CTN size (cm) |
47×31×20 |
Express(UPS/Fedex) Weight (kg) |
8 |
Our factory was established in April 1998, located in Harbin, Heilongjiang province. We have an independent R&D organization and has established long-term cooperative relationships with state key universities and colleges like Harbin Institute of Technology, Harbin Engineering University, etc. Annual production is more than 150,000 sets. We exported to Europe, the United States, Canada, Japan, and etc 60 countries. We have sole dealers in AU and UK and Denmark.
Packing List | ||||||
No. | Name | Specification | QTY | Purchase code | LCD switch | LCD switch and GSM controller |
1 | Heater | YJH-Q5/1Q( ) | 1 | 4A100512C11 | √ | √ |
YJH-Q5/1C( ) | 4A100512Q11 | √ | √ | |||
YJH-Q5/2C( ) | 4A100524C11 | √ | √ | |||
2 | Heater bracket | YJH-Q5S155×142×42 t=2 | 1 | 31000004000 | √ | √ |
3 | Rubber cushion | 5×20×4 | 4 | 12040001500 | √ | √ |
4 | Bolt | M6×95 | 1 | 12050009900 | √ | √ |
5 | Fuel pump | 12V with damper( ) | 1 | 33000007600 | √ | √ |
24V with damper( ) | 33000007700 | √ | √ | |||
6 | Oil pump clip | φ32 | 1 | 12010007100 | √ | √ |
7 | Filter | RYL-Ⅰ(only for diesel) | 1 | 33000000400 | √ | √ |
8 | Fuel pipe joint | φ3.5/φ9.5 L=40 | 2 | 12060003900 | √ | √ |
9 | Fuel pipe joint | φ4.1/φ10.5 L=40 | 3 | 12060003800 | √ | √ |
10 | Clip | φ8~10(9) | 3 | 12010004300 | √ | √ |
11 | Clip | φ9~11(10) | 7 | 12010004200 | √ | √ |
12 | Fuel pipe(to heater) | φ4×1×6800 transparent | 1 | 12060004200 | √ | √ |
13 | Fuel pipe(to tank) | φ2×φ5×1200 blue | 1 | 12060004600 | √ | √ |
14 | Fuel suction pipe | XYG-Ⅰ 3×400 | 1 | 31000001300 | √ | √ |
15 | Wiring harness | YJH-Q5 | 1 | 12030100301 | √ | √ |
16 | Air inlet pipe | φ20.5/φ24 L=500 | 1 | 31010102600 | √ | √ |
17 | Clip | 16-25 | 1 | 12010004500 | √ | √ |
18 | Air inlet pipe fixing pipe | 150×16 t=0.5 | 2 | 29010003700 | √ | √ |
19 | Exhaust pipe | φ24/φ29.5 L=700 | 1 | 31010102700 | √ | √ |
20 | Exhaust pipe clip | φ24-28 | 3 | 12010004400 | √ | √ |
21 | Exhaust pipe fixing clip | φ27 t=0.8 | 2 | 29010002300 | √ | √ |
22 | Muffler | XYQ-Ⅰ | 1 | 12500004700 | √ | √ |
23 | Muffler bracket | 52×33×30 t=1.5 | 1 | 29010003400 | √ | √ |
24 | Bolt | M6×10 | 1 | 12050003300 | √ | √ |
25 | Spring washer | φ6 | 2 | 12010006400 | √ | √ |
26 | Washer | φ6/φ12 | 2 | 12010006600 | √ | √ |
27 | Nut | M6 | 1 | 12050003400 | √ | √ |
28 | Water pump | 12V () | 1 | 12500004300 | √ | √ |
24V () | 12500004400 | √ | √ | |||
29 | Water pipe | φ17/φ27 L=2600 | 1 | 12060003400 | √ | √ |
30 | Spring clip | φ24×φ27 | 10 | 12010018100 | √ | √ |
31 | water pipe connector | φ18 L=55 | 2 | 12020014600 | √ | √ |
32 | Special water pipe connector | PPA +33 φ20×φ18 L=60 | 2 | 12020001400 | √ | √ |
33 | Non-return valve | D18 | 1 | 33000009400 | √ | √ |
34 | Transition elbow | φ18 | 2 | 12020014000 | √ | √ |
35 | Fixing gear | φ24×4 | 2 | 12020014200 | √ | √ |
36 | O-ring | 14.8×2.62 | 2 | 12040007710 | √ | √ |
37 | Self-drilling tapping screw | ST5.5×30 | 10 | 12050003000 | √ | √ |
38 | Self-tapping screw | ST4×16 | 2 | 12050002700 | √ | √ |
39 | Nylon cable ties | 4×200 | 1 | 21990000000 | √ | √ |
40 | Control switch | LCD switch ( ) | 1 | 31010001100 | √ | ⚪ |
LCD switch ( )GSM remote controller | 31010001100 | ⚪ | √ | |||
12500005000 | ⚪ | √ | ||||
remote controller transfer line | 12030101800 | ⚪ | √ |
